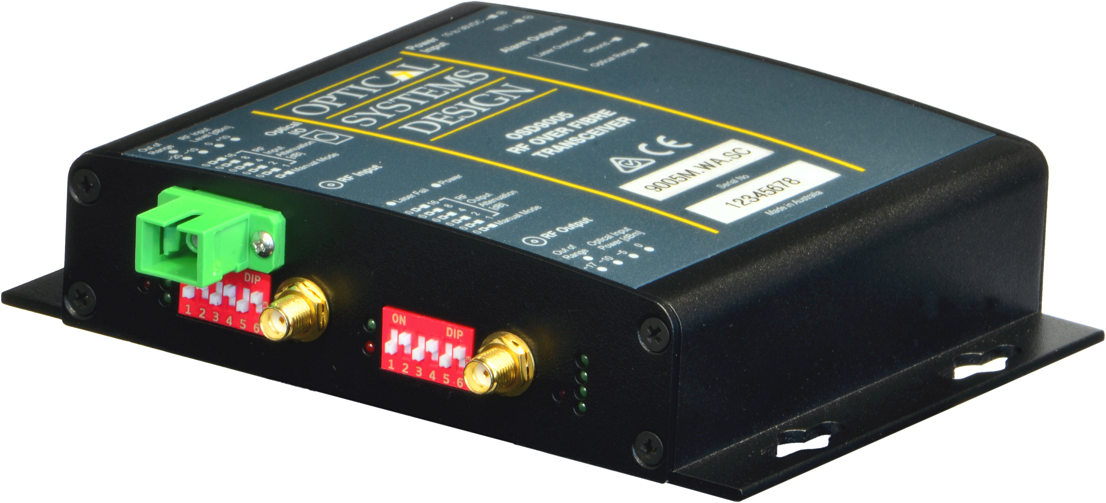

OSD9005 Product Details
APPLICATIONS
- Any linear RF transmission over fiber from 30 to 2500MHz such as antenna remoting and EMI/EMC measurements
- Mobile RF systems between 800 and 1900MHz
- UHF/VHF radio links
FEATURES & BENEFITS
- Standard optical and RF connectors simplify system integration
- Operates over from at least 40km of singlemode fiber and optionally available with high power laser to operate over at least 80km
- High linearity and low noise DFB laser enable very wide dynamic range links
- User selectable manual or automatic input level control enables flexible system integrational input level control enables flexible system integration
- Bargraph display of input RF level and of the received optical signal level aids simple and effective system setup
- Operates from -20°C to +65°C so can be installed in almost any environment
- Operates with non-critical power voltages
- Rugged metal case for in field deployment and card version for use in OSD’s 19” 3RU rack systems for efficient system design
- Optional remote monitoring/alarming capability
Product Downloads
| Name | Description | Filetype | Filesize |
| OSD9005 DS | OSD9005 Datasheet | application/pdf | 519.21K |
