OSD2288P Product Details

Introduction

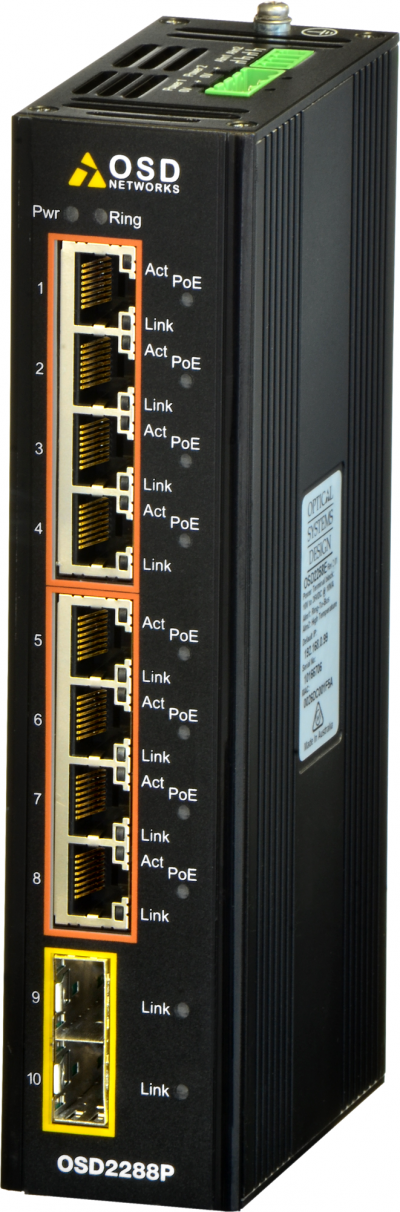

The OSD2288P is a 10-port lite managed industrial Ethernet switch with eight Gigabit RJ45 ports and two 1G/2.5G SFP uplink ports which can be used as standard LAN ports or as a redundant fiber ring using OSD’s proprietary ring protocol. Each RJ45 port can provide up to 90W PoE to power a wide range of devices. Along with higher level features including SNMP, VLAN and IGMP snooping the OSD2288P is suitable for use in critical networks. A rugged IP30 casing, fan-less design and wide operating temperature range from -40 to +75ºC make it suitable for use in a wide range of harsh industrial environments.

Features and Benefits

▲ Complies with IEEE802.3i/802.3u/802.3ab 10/100/1000Base-T, IEEE802.3u 100Base-Fx, IEEE802.3z 1000Base-X, IEEE802.3cz 2.5GBase-X standardsds
▲ Has a total of 10 ports: eight fixed copper ports for 10/100/1000Base-T and two SFP ports for the fibre ring or non-ring (1G/2.5GBase-X)
▲ Ring reconfiguration in the case of cable or switch failures takes less than two milliseconds per hop
▲ MDI/MDIX Crossover: no need for crossover cables
▲ Can be used with either 1 or 2 singlemode or multimode fiber over a variety of link budgets via plug in SFP module (sold separately)
▲ Supports IEEE802.3af/at/bt PoE and PoH up to 90W for each RJ45 port up to a total power budget of 480W
▲ Auto-Negotiation for half or full duplex operation
▲ Powered by non-critical 46 to 57VDC supplies with dual power supply inputs
▲ Integrates with third party NMS system via industry standard SNMP v1, v2c, v3
▲ Supports 10KB jumbo frames
▲ Supports VLAN and IGMP v1, v2, v3 snooping
▲ Remote PoE on/off control and status monitoring
▲ Redundant ring operation is compatible with all OSD225* & OSD228* series Gigabit Ethernet switches
▲ Operates over the temperature range of -20 to +75ºC

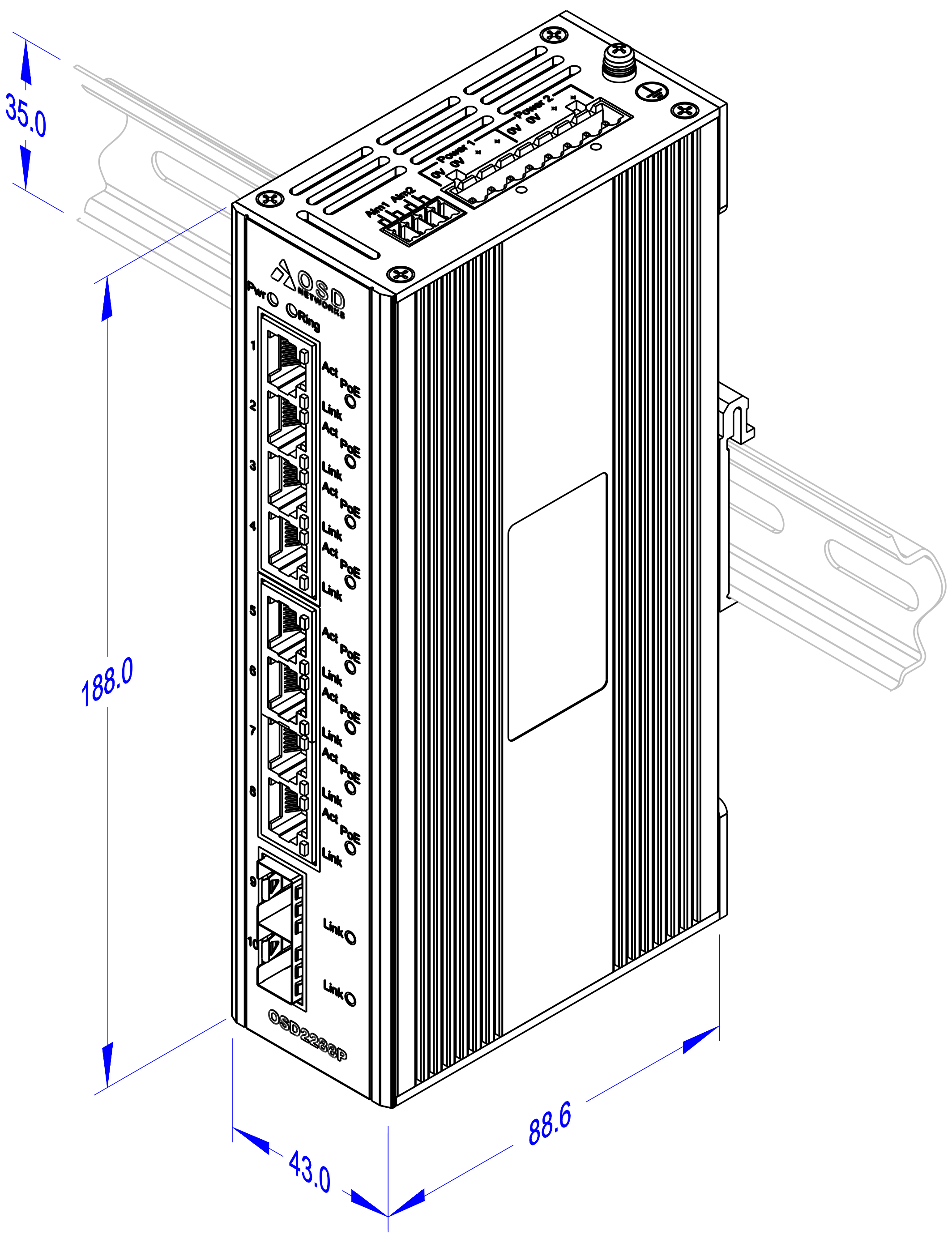

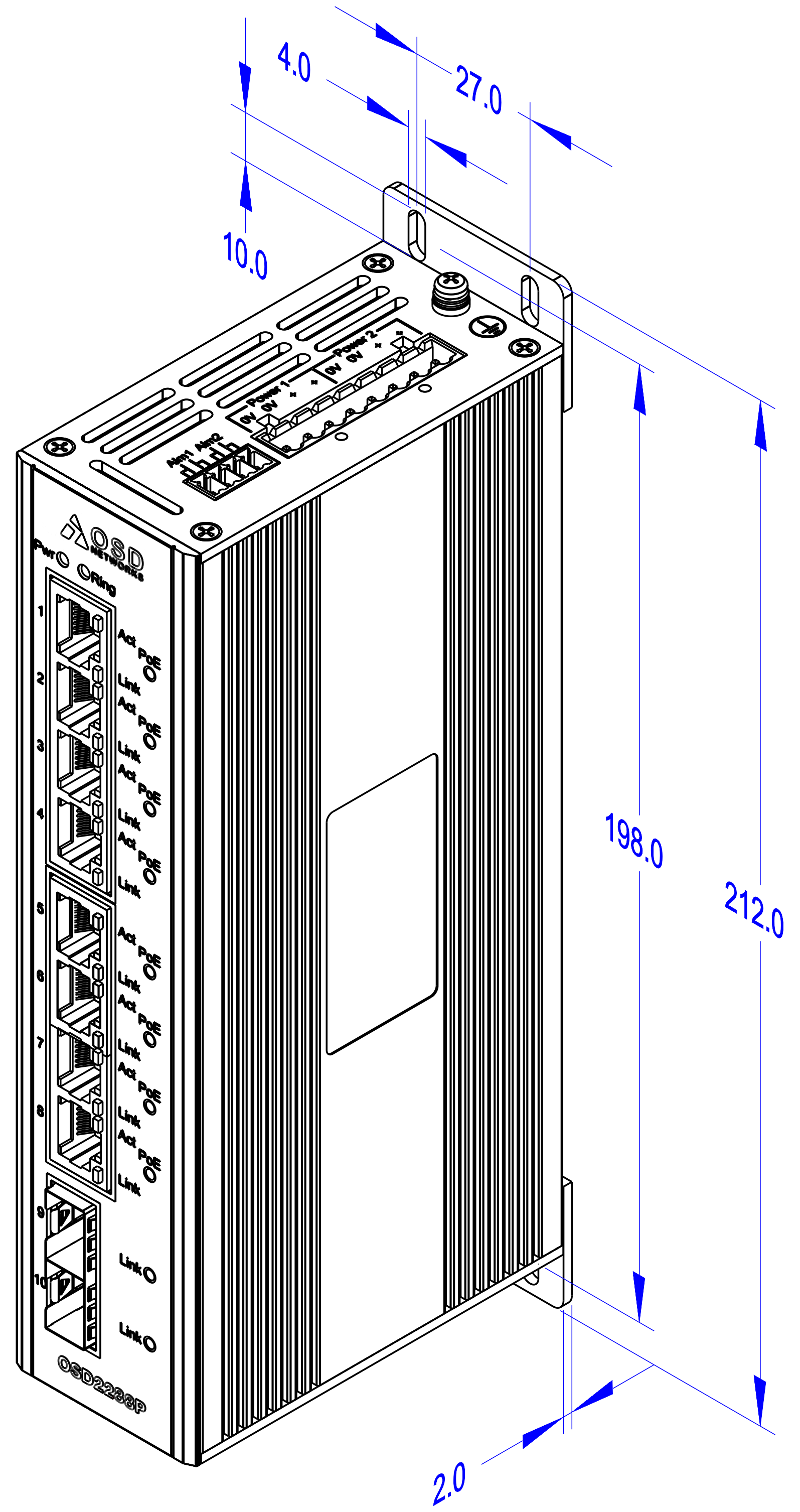

▲ DIN rail or wall mounting
▲ Available for operation in ring, bus or point-to-point configuration
